The Tomb
Battle Map

A tiered tabletop battle map for the finale of a D&D campaign — carved from foam, painted, and wired with three independent addressable LED circuits that never quite repeat themselves.

Built
March 2025
Structure
Carved & painted foam
Electronics
Arduino · FastLED · WS2812
Lighting
82 addressable LEDs, 3 circuits
Frame rate
~50 fps (20 ms loop)
The finished battle map photographed in a dark room: a glowing orange lava field in the foreground, a green-lit shrine platform behind it, and a monster miniature raised on a lit pillar.
Lights out, everything running. The underlight, the torches and the shrine are three separate circuits on three separate pins — they drift independently, so the table never settles into a loop the players can read.

What it's for

Tabletop terrain is usually static. You put a printed mat down, you put some rocks on it, and everyone imagines the rest. The point of this build was to make the table do some of the imagining — to have the light actually move, the torches actually gutter, and the shrine glow like something is wrong with it.

It was made for one night: the last encounter of a long campaign. Everything about the layout is in service of that fight — a raised shrine platform where the ritual happens, a lava basin below it that players have to cross, torch-lit alcoves for the things waiting in them, and a narrow bridge that turns the whole thing into a choke point.

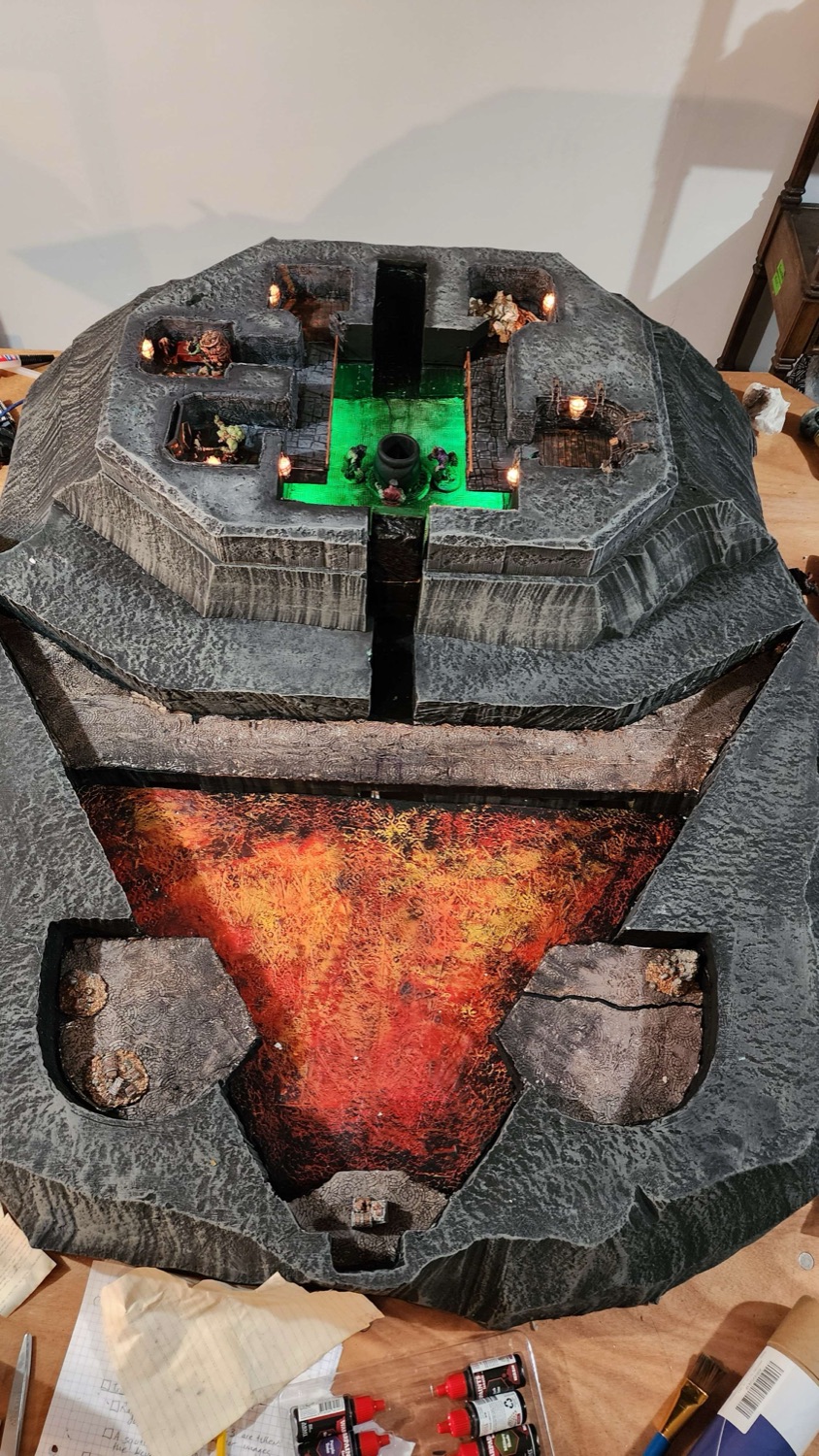

Overhead view of the whole map, showing the tiered octagonal shrine platform above and the lava basin below, with torch-lit alcoves cut into both tiers.
The full layout from above. Shrine platform up top, lava basin below, alcoves cut into both tiers — and a single bridge between them.

Three circuits, not one

The obvious build is one long strip and one array. I split it into three, on three pins, because the effects have nothing to do with each other and I did not want to spend the rest of the project doing index arithmetic to keep them apart:

// Three strips, three arrays, three completely separate jobs.
#define LED_PIN          6   // main strip — drifting blue/purple
#define ROOM_PIN         5   // torches
#define SPOOKY_PIN       4   // the shrine
#define NUM_LEDS        72
#define NUM_TORCHES      4
#define NUM_SPOOKY_LEDS  6   // two groups of three

FastLED.addLeds<WS2812, LED_PIN,    GRB>(mainLeds,   NUM_LEDS);
FastLED.addLeds<WS2812, ROOM_PIN,   GRB>(torchLeds,  NUM_TORCHES);
FastLED.addLeds<WS2812, SPOOKY_PIN, GRB>(spookyLeds, NUM_SPOOKY_LEDS);

Each array gets its own update function, they all write into their own buffer, and a single FastLED.show() pushes everything at once. Adding a fourth effect later meant adding a pin and a function, not rewriting the loop.

Making light look alive

The whole trick with this kind of lighting is that anything perfectly periodic reads as fake within about ten seconds. All three effects are built to avoid settling.

The main strip

Seventy-two LEDs running a sine wave across their own length, offset by a hue that creeps forward one step every frame. The hue is clamped to a narrow band so it wanders through blues and purples and never cycles further — a full rainbow sweep would read as a party light. It is the cold ambient the warm sources get to play against.

uint8_t hue = 160 + (sin8(i * 255 / NUM_LEDS + baseHue) >> 2);
mainLeds[i] = CHSV(hue, 255, 255);   // ~160-200: blue through purple

The torches

No wave at all — every torch picks a fresh random brightness and a fresh warm hue on every single frame. At 50 frames a second that reads as a proper flicker. The ranges are narrow on purpose: brightness never drops below 200, so a torch never actually appears to go out, and the hue stays in the orange band.

uint8_t brightness = random(200, 250);
torchLeds[i] = CHSV(random(20, 40), 255, brightness);

The shrine

Six LEDs in two groups of three. Each group runs its own small gradient, and the base hue advances by a random one or two steps per frame instead of a fixed one — so the two groups slide out of phase with each other and never resynchronise. The hue is hard-constrained to a ten-degree window, because green is the one colour where a few degrees of drift stops looking sickly and starts looking like a Christmas light.

hue = constrain(hue, 85, 95);                       // a narrow, ugly green
spookyLeds[i] = CHSV(hue, 255, random(100, 120));   // dim, and breathing

Every one of those magic numbers is a number I got wrong first. The original torch range went down to zero brightness and the torches looked like they were short-circuiting. The shrine was unconstrained and drifted into mint. You do not find these values on paper — you find them by putting the thing on a table in a dark room and staring at it.

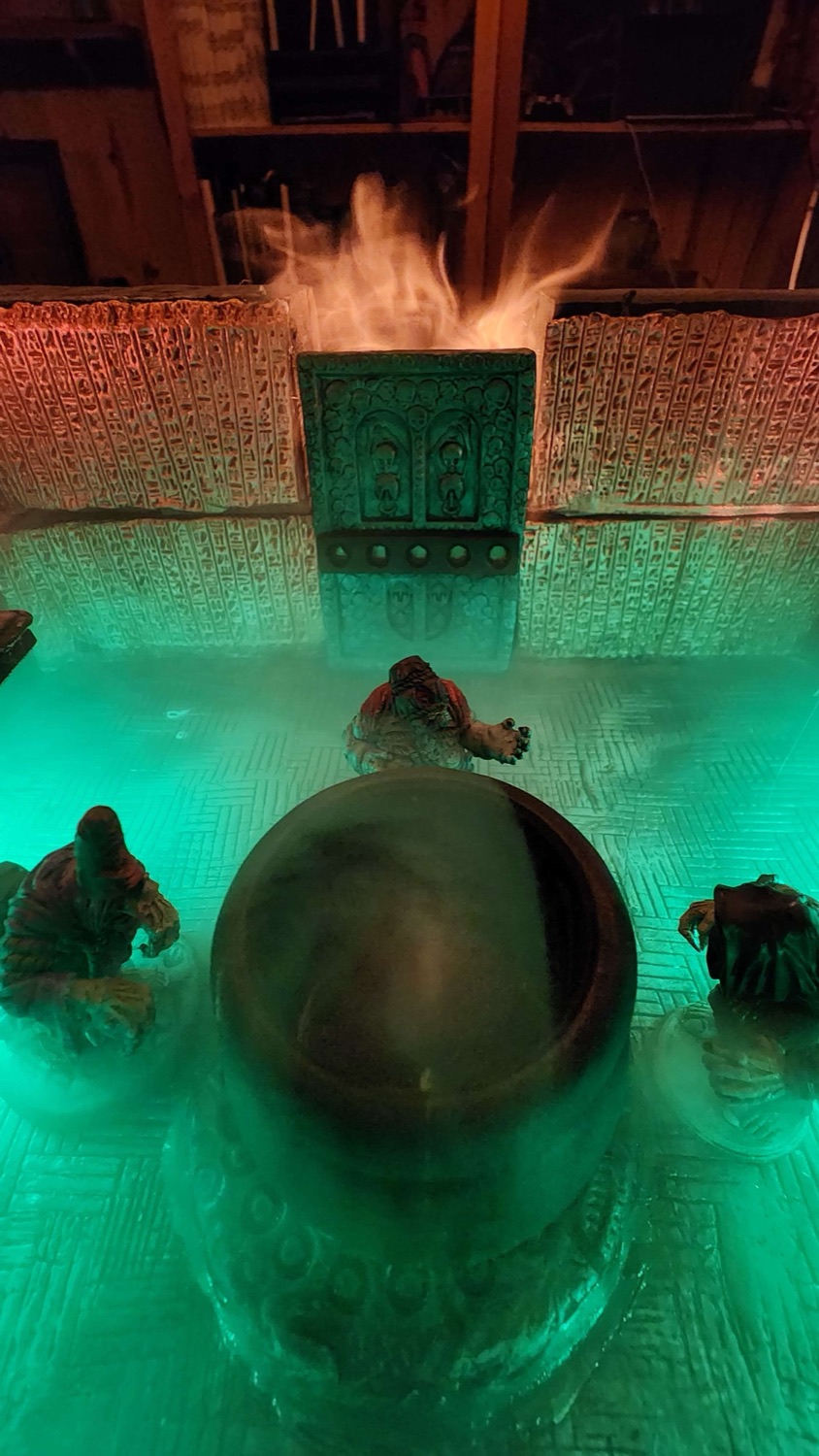

Close-up of the shrine platform lit in green, with fog rolling over a cauldron and painted miniatures around it.
The shrine at ground level. The green is dim on purpose — it has to lose to the lava.

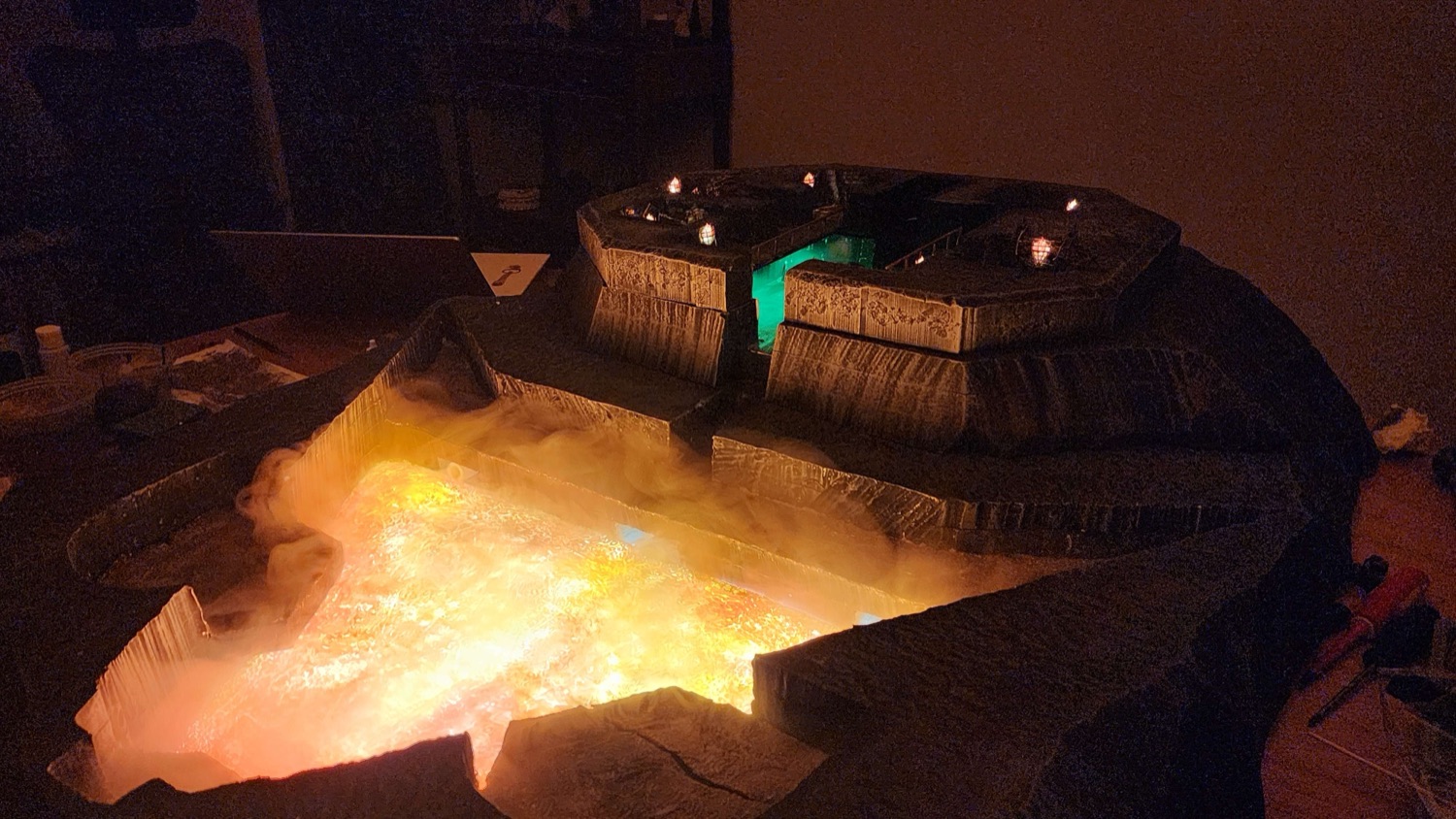

Wide view of the lava basin glowing orange beneath the raised shrine platform.
The lava basin, lit from beneath the surface.

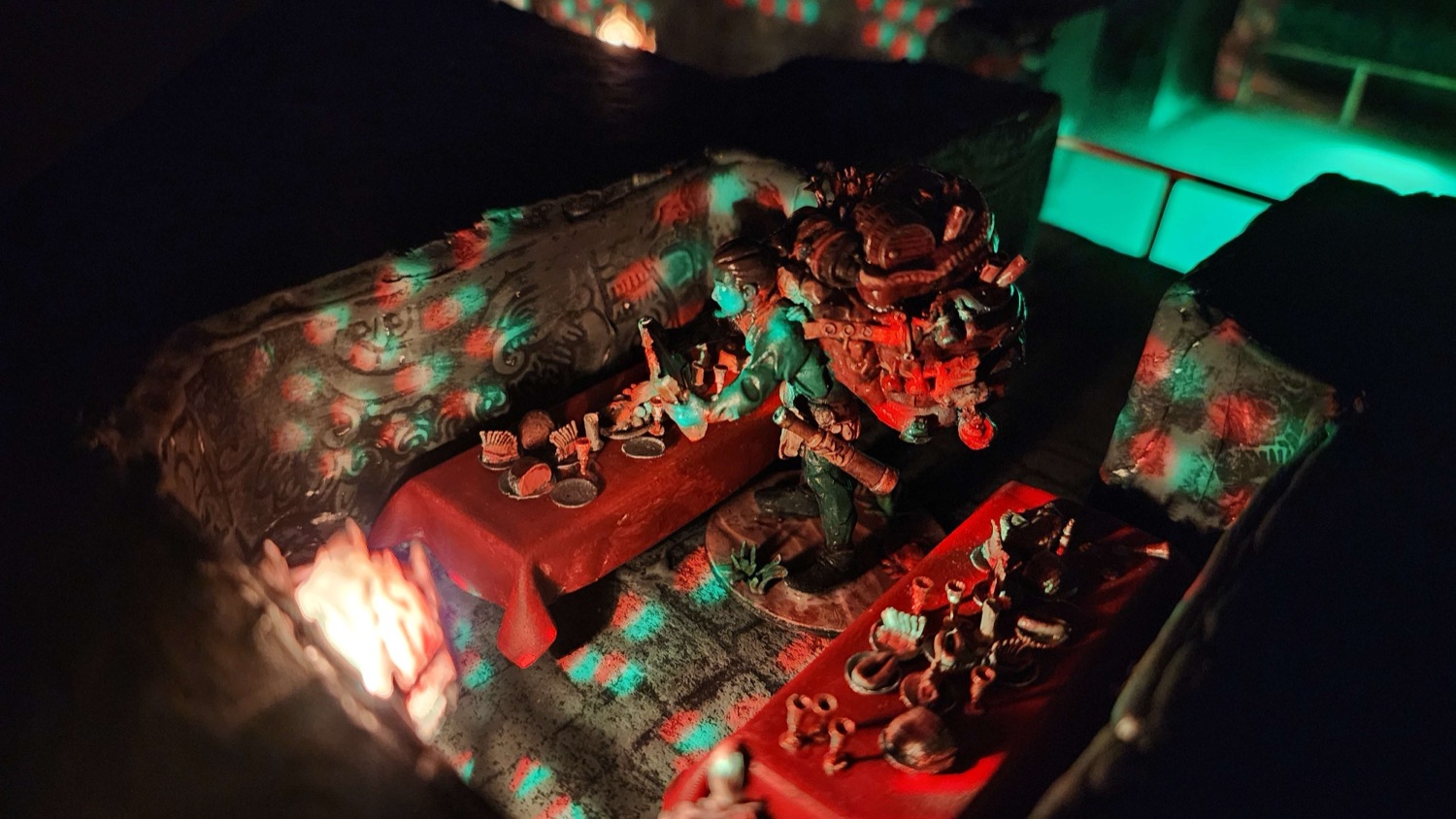

A torch-lit alcove containing painted miniatures around a table.
One of the torch-lit alcoves, with the warm circuit doing its work.

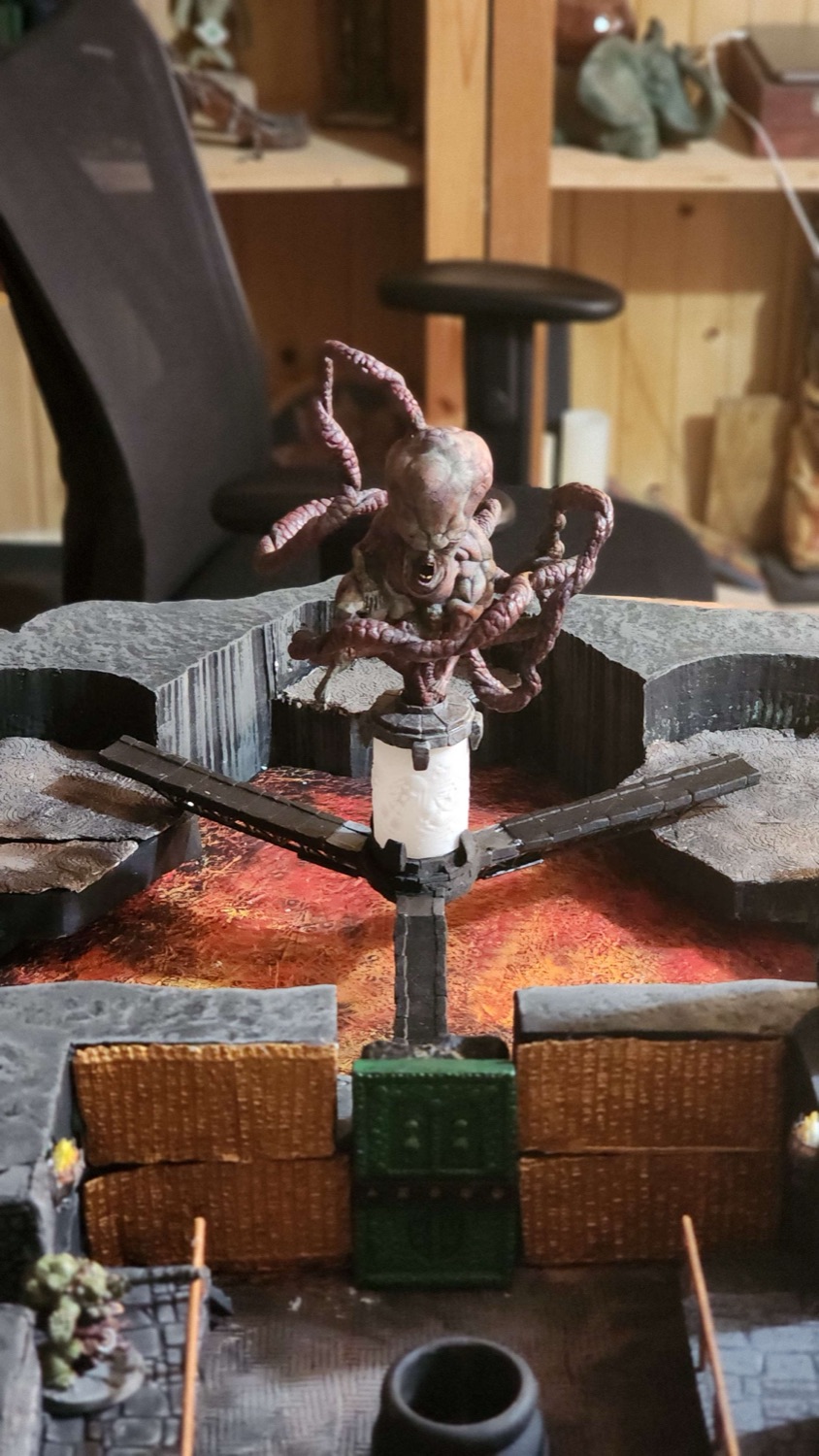

The map photographed in daylight on a workbench, showing the carved foam structure and the central pillar.
Daylight, on the bench. A useful reminder of how much of the effect is the dark room rather than the sculpt.

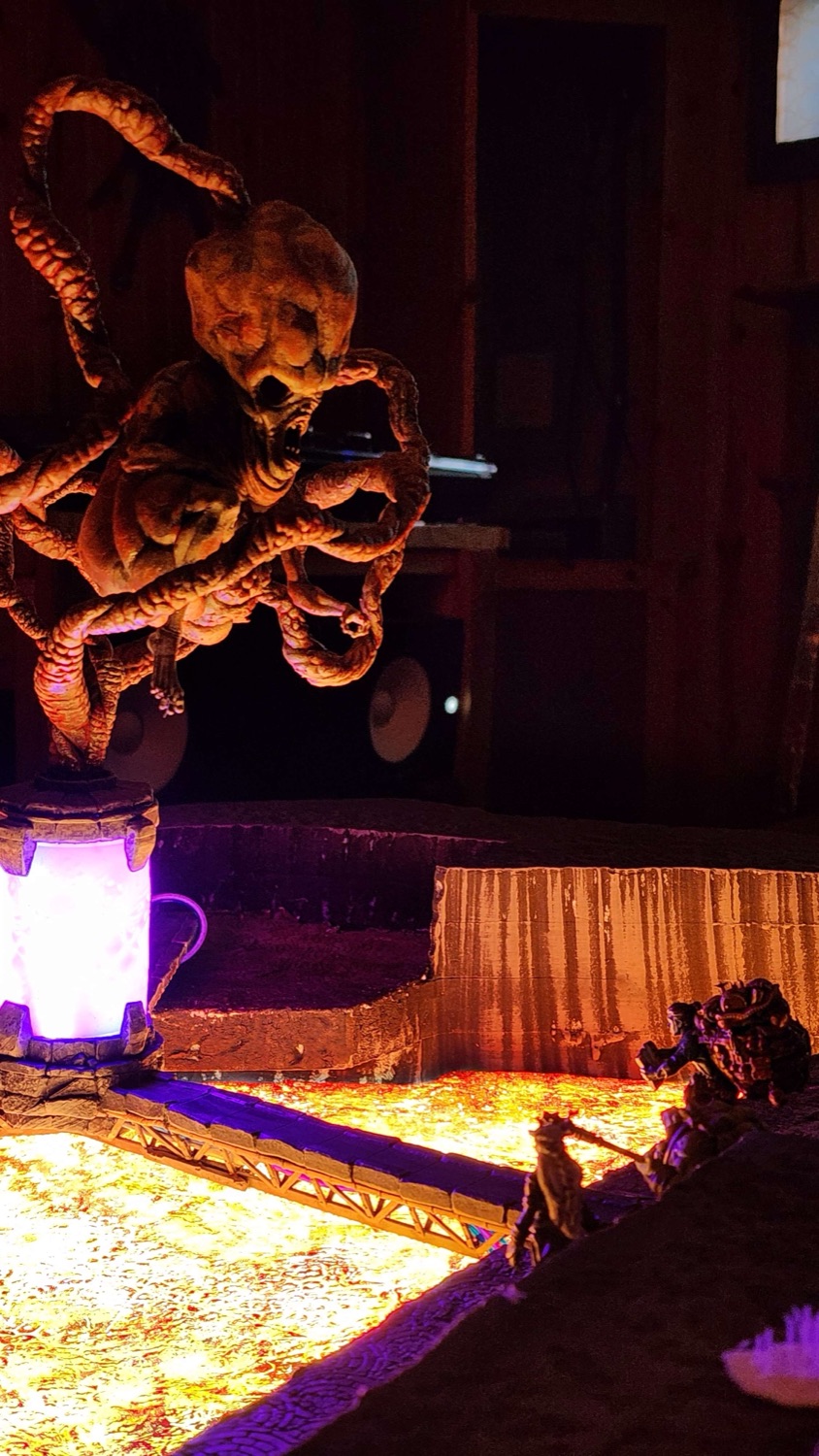

Low-angle night shot of a tentacled monster miniature mounted above a lit pillar, with the lava field glowing below and figures crossing a bridge.
Table height, lights out — which is the only angle that actually matters.

What I'd carry forward
